PHL

1

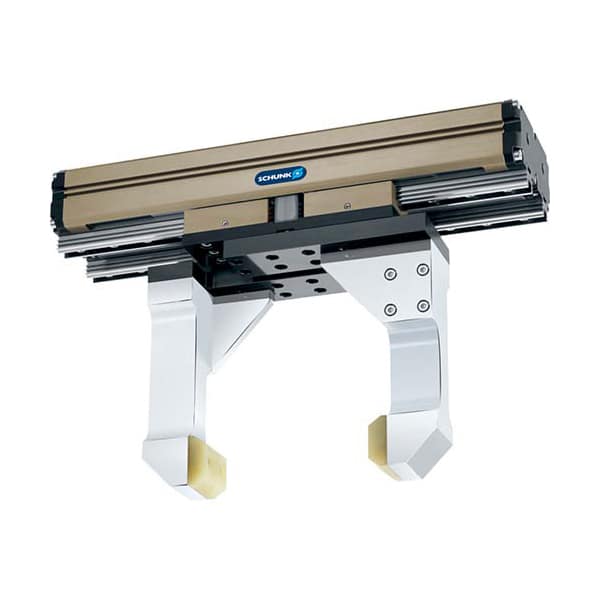

2-finger parallel gripper with long jaw stroke for large parts and/or a broad range of parts

Field of application
Optimum standard solution for many fields of application. Universal application in clean and slightly dirty surroundings in machine building and plant building industry, assembly and handling as well as automotive industry.

SKU: SCHUNKPHL Categories: , Tag:

Advantages – Your benefits
– Modular with two alternative guidances: for optimal adaption to your application
– High maximum moments possible: suitable for using long gripper fingers
– Double piston rack and pinion principle: for centric clamping
– Fastening at one gripper side in two screw directions: for universal and flexible gripper assembly
– Air supply via hose-free direct connection or screw connections: for flexible pressure supply in all automated systems
– Comprehensive sensor accessory program: for versatile querying possibilities and stroke position monitoring
– Stroke versions: for highest flexibility

Options and special information
– Sliding bearing version PHL-G: with proven SCHUNK multi-tooth guidance for robust and reliable applications
– Roller bearing version PHL-W: with play-free, pre-loaded profile rail guides for higher precision, even larger loads, and longer finger lengths, and at the same time with an increased gripping force
– Mechanical gripping force maintenance: ensures a minimum gripping force in the event of a pressure loss This acts as the closing force in the S version. The design of the top jaws means that they can also be used as an opening force.
– High-temperature version V/HT: for use in hot environments
– Additional stroke versions: available in three stroke variants as standard
– Additional versions: Various options can be combined with each other. Numerous additional options are also available – just tell us what your task is!
