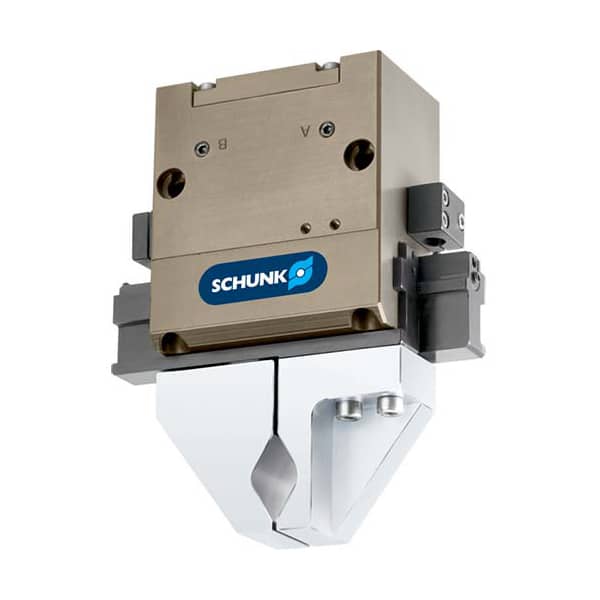

Universal parallel gripper with surface-guided base jaws

Field of application
suitable for clean work environments and high part diversity due to its long jaw stroke and high gripping forces

Categories: , Tag:

Advantages – Your benefits

– Precise flat guidance: for very good guidance characteristics
– Large stroke at compact design: for minimal interfering contours
– Mounting from two sides in three screw directions: for universal and flexible gripper assembly
– Air supply via hose-free direct connection or screw connections: for flexible pressure supply in all automated systems
– M5 connection on both sides of the guidances: for the use of lubricating nipples

Options and special information
Gripping force maintenance version AS/IS: The mechanical gripping force maintenance version ensures minimum gripping force even in the event of a pressure drop. In the AS/S version this acts as a closing force, in the IS version as an opening force.

Due to the long guidance, the gripper is highly resistant during gripping operations where the gripper fingers are exposed to high moment loads. Grippers with a higher exchange accuracy are available on request.
